3.2 Full extracted asbuton Test Results
Physical test of full extracted asbuton was conducted to determine the characteristics of full extracted asbuton to be used in the AC-BC mixture. The results of the full extracted asbuton physical properties test are shown in Table 4.

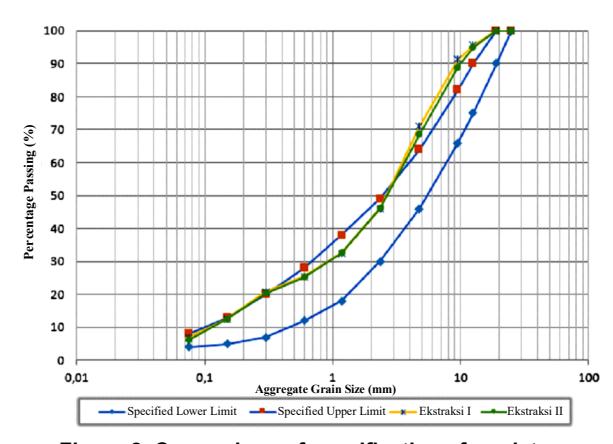

Figure 2. Comparison of specifications for mixture gradation and aggregate gradation of RAP material
Table 4. Test results for full Extracted asbuton properties
| Test Type | Test Result |
|---|---|
| Penetration (dmm) | 13,50 |
| Softening Point (°C) | 73,00 |
| Asphalt Specific Gravity | 1,055 |
3.3 The addition of Full extracted asbuton and Pen 60/70 Hard Asphalt to RAP Material Extracted Asphalt and Rejuvenating Material
Determination of the content of Nichireki rejuvenating material used was conducted based on the penetration value approach. Asphalt extracted from the RAP Material was heated up to 120°C and then was added with rejuvenating material based on the weight ratio. The asphalt extracted from the RAP material was heated to 120°C and then a rejuvenating material was added based on the weight ratio. The penetration value refers to the basic asphalt requirements, namely Pen 60/70 hard asphalt from the 2010 Bina Marga General Specifications (rev. 3). Along with the increase in the content of Nichireki in the RAP material asphalt, the penetration value will also increase. Based on the test results, it is known that the addition of Nichireki of 42% of weight of RAP material asphalt will provide a penetration value that is in accordance with Shell Pen 60/70 Asphalt.
To determine the physical properties of the combination of Shell Pen 60/70 Asphalt and full extracted asbuton with asphalt extraction of RAP and Nichireki, a test of the physical properties of asphalt from the mixture of these materials was conducted,
Table 5. Relationship of nichireki content with RAP asphalt penetration
| Content Nichireki | RAP Asphalt Penetration Value | |||
|---|---|---|---|---|
| (%) | (dmm) | |||
| 0 | 10,80 | |||
| 10 | 18,63 | |||
| 20 | 27,00 | |||
| 30 | 39,79 | |||
| 40 | 58,75 | |||
| 42 | 61,90 | |||
| 50 | 78,60 | |||
Table 6. Asphalt mixing physical properties test results
| Test | Specifi | cations | Test Result | ||||
|---|---|---|---|---|---|---|---|
| Type | Min | Maks | A6RAP0 | A6RAP30 | A6RAP40 | A6RAP50 | |
| Asphalt Penetration | 60 | 79 | 55,38 | 63,60 | 66,50 | 67,10 | |
| Softening Point | 48 | - | 52,25 | 50,75 | 50,25 | 49,25 | |
where the composition of full extracted asbuton was 6%, RAP Material asphalt content were at 0%, 30 %, 40%, and 50%, and Nichireki was 42% of the test sample weight.
Table 6 shows that the addition of full extracted asbuton to the Shell Pen 60/70 Asphalt shows that this asphalt mixture is stiffer and has the ability to resist better surface temperatures. Asphalt mixture with the use of RAP and Nichireki materials of 42% results in a higher penetration value and lower softening point temperature along with the addition of RAP material content and the addition of Nichireki making the asphalt mixture softer.
The results of test and analysis of kinematic viscosity data show that the addition of full extracted asbuton to the Shell Pen 60/70 Asphalt and the use of RAP asphalt will make the mixture thicker, resulting in an increase in the mixing temperature and the temperature of the asphalt mixture, where the mixing temperature and compaction temperature range on the Pen 60/70 Shell Pen Asphalt (150-156°C and 142-147°C) was lower compared to the mixture of Shell Pen 60/70 Asphalt and the addition of full extracted asbuton (153,2-159,1°C and 141-146,4°C) and the addition of full extracted asbuton to the Shell Pen 60/70 Asphalt and the use of RAP Asphalt and Nichireki generated the highest mixing temperature and compaction
Table 7. Marshall parameter values under OAC<sub>Ref</sub> condition for each mixture variation
| • | ||||
|---|---|---|---|---|
| Criteria | A6RAP0 | A6RAP30 | A6RAP40 | A6RAP50 |
| OAC (%) | 5,25 | 5,40 | 5,44 | 5,70 |
| Stability (kg) | 2.135,67 | 1.446,31 | 1.410,99 | 1.348,54 |
| Flow (mm) | 3,62 | 5,10 | 6,41 | 6,92 |
| VIM (%) | 3,64 | 3,30 | 3,06 | 3,11 |
| VMA (%) | 14,34 | 14,68 | 14,16 | 14,18 |
| VFA (%) | 74,08 | 76,56 | 77,64 | 77,23 |
| MQ (kg/mm) | 589,96 | 283,59 | 220,12 | 194,88 |
352 Jurnal Teknik Sipil
temperature of Shell Pen 60/70 Asphalt (155-159°C and 147-151°C).
3.4 AC-BC mixture test
In this test, the mixtures used were:
- a. A6RAP0 Mixture is a mixture with 0% RAP Material with an addition of 6% of full extracted asbuton;
- b. A6RAP30 Mixture is a mixture with 30% RAP Material with an addition of 6% of full extracted asbuton:
- c. A6RAP40 Mixture is a mixture with 40% RAP Material with an addition of 6% of full extracted asbuton;
- d. A6RAP50 Mixture is a mixture with 50% RAP Material with an addition of 6% of full extracted asbuton.
3.4.1 Marshall test and absolute density approach
Marshall test was conducted to obtain the Optimum Asphalt Content (OAC) from each mixture variation. OAC was obtained based on asphalt content that met the Marshall parameter specifications and mixture volumetrics, namely stability, flow, VIM, VMA, and VFA based on Marshall test results to obtain Marshall OAC and Absolute Density Approach to obtain OAC<sub>Ref</sub> according to the 2010 Bina Marga General Specifications (rev. 3). The OAC value of each mixture is presented in Table 7.
3.4.2.Marshall immersion test
The Marshall Immersion test was conducted to determine the durability of the asphalt mixture against water damage by immersing the specimens in water at a temperature of 60°C for 24 hours, then comparing them with the specimens immersed in standard condition (immersion for 30 minutes). The percentage of stability comparison is called the Residual Strength Index (RSI). The test specimen used for this test was a mixture of asphalt under OAC<sub>Ref</sub> condition. Marshall immersion test results are shown in Table 8.
Table 8. Marshall immersion test Results
3.4.3 Resilient modulus test with UMATTA
Resilient Modulus Test was conducted using the UMATTA tool, where the test specimen used was diametrically shaped like the Marshall test specimen and made under OAC<sub>ref</sub> condition. The test method referred to AASHTO TP31 and ASTM D 4123-82 with test temperatures of 35°C and 45°C. The results of the Resilient Modulus test for each mixture variation are shown in Table 9.
3.4.4 Resistance to fatigue test with the four point loading test method
This test was conducted on every mixture variation under OAC<sub>Ref</sub> condition. The test object was a beam where each mixture variation was tested at two levels of strain, namely 300 and 500. According to AASHTO T 321-07, the fatigue test temperature was \(20\pm0.5\)°C. Fatigue test results can be seen in Table 10.
4. Data Analysis
4.1 RAP material extraction test analysis
The asphalt in the RAP material had undergone an oxidation process which caused the evaporation of the light fraction in the asphalt and the change in the liquid fraction (maltenes) to solid (asphaltenes) so that the asphalt became harder or stiffer, as seen from the average penetration value of 10.80 dmm and softening point at a temperature of 75.50°C, so a higher temperature or the addition of a rejuvenating material was needed to make the asphalt softer.
While for the aggregate of RAP material, the results of the sieve analysis show that the gradation of the aggregate of RAP material tended to be smooth, because the aggregate experienced wear due to friction with traffic loads and due to the asphalt stripping process using a recycler machine (milling machine)
| Missterna Duamantes | Charification | Mixture Variation | |||
|---|---|---|---|---|---|
| Mixture Property | Specification - | A6RAP0 | A6RAP30 | A6RAP40 | A6RAP50 |
| Standard Immersion Stability (kg), A | >1.000 | 1749,4 | 2.164,4 | 2.198,6 | 1.947,8 |
| 24-hour Immersion Stability (kg), B | - | 1632,0 | 2.094,7 | 2.172,8 | 1.925,6 |
| RSI (%) =B/A | >90 | 93,30 | 96,80 | 98,80 | 98,90 |
Table 9. Resilient modulus test with UMATTA tool
| Test Mixture Temperatur | Test Temperature | Resilien Modulus (RM) | RM Standar Deviation | MR Coefficient of Variance | ||
|---|---|---|---|---|---|---|
| Type | (°C) | (µm) | (N) | (MPa) | Deviation | OI Variance |
| ACDADO | 35 | 10,54 | 1.501 | 1.535 | 36,13 | 2,35 |
| A6RAP0 | 45 | 14,13 | 1.406 | 1.090 | 44,01 | 4,04 |
| A CD A DOO | 35 | 15,62 | 1.474 | 1.037 | 19,97 | 1,93 |
| A6RAP30 | 45 | 18,84 | 1339 | 780 | 31,33 | 4,02 |
| A CD A D 40 | 35 | 9,14 | 1525 | 1.861 | 20,77 | 1,12 |
| A6RAP40 | 45 | 15,71 | 1336 | 950 | 29,75 | 3,13 |
| A CD A DEO | 35 | 12,32 | 1506 | 1.381 | 32,29 | 2,34 |
| A6RAP50 | 45 | 20,71 | 1340 | 734 | 21,55 | 2,93 |
7DEOH)DWLJXHWHVWZLWKIRXUSRLQWORDGLQJWHVWPHWKRGUHVXOWV
| )OH[XUDO6WLIIQHVV 03D | |||||
|---|---|---|---|---|---|
| 0L[WXUH7\SH | 6WUDLQ/HYHO—İ | ,QLWLDO | &XUUHQW | 7HUPLQDWLRQ | /RDG5HSHWLWLRQ&\FOHV |
| $5$3 | |||||
| $5$3 | |||||
| $5$3 | |||||
| $5$3 | |||||
ZKLFK EURNH WKH DJJUHJDWH LQWR ILQHU IUDFWLRQV 7KH UHVXOWV RI WKH WHVW RI VSHFLILF JUDYLW\ RI WKH 5$3 PDWHULDO DJJUHJDWH DQG DEVRUSWLRQ VKRZ WKDW WKH DJJUHJDWH RI WKH 5$3 PDWHULDO ZDV TXLWH JRRG DQG FRXOGEHUHXVHGLQWKHPDNLQJRIDVSKDOWPL[WXUHV
)XOOH[WUDFWHGDVEXWRQWHVWDQDO\VLV
7KHWHVWUHVXOWVRIWKHDYHUDJHSHQHWUDWLRQYDOXHRIIXOO H[WUDFWHG DVEXWRQ RI GPP LQGLFDWHG WKDW IXOO H[WUDFWHG DVEXWRQ KDG VWLIIHU SURSHUWLHV7KLV FDQ DOVR EH VHHQ IURPWKH VRIWHQLQJ SRLQWWHVW RI IXOO H[WUDFWHG DVEXWRQDWDWHPSHUDWXUHRIR&
$QDO\VLV RI DGGLWLRQ RI IXOO H[WUDFWHG DVEXWRQ DQG SHQ KDUG DVSKDOW ZLWK 5$3 H[WUDFWLRQDVSKDOWDQGUHMXYHQDWLQJPDWHULDO
7KH DGGLWLRQ RI IXOO H[WUDFWHG DVEXWRQ ZRXOGLQFUHDVH WKH KDUGQHVV RI 6KHOO 3HQ $VSKDOW ZKHUH WKH SHQHWUDWLRQ YDOXH ZDV GPP DQG WKH VRIWHQLQJ SRLQWDWR&ZDVKLJKHUWKDQWKHVRIWHQLQJSRLQWRI 6KHOO3HQ$VSKDOWWKLVLQGLFDWHGWKHDGGLWLRQRI IXOO H[WUDFWHG DVEXWRQWRWKH 6KHOO 3HQ $VSKDOW FRXOGEHXVHGLQKLJKWHPSHUDWXUHFRQGLWLRQV
7KHUHVXOWVRIWKHWHVWRQ5$3DVSKDOWZLWKWKHDGGLWLRQ RI1LFKLUHNLEDVHGRQWKHUHVXOWVRIWKHSHQHWUDWLRQWHVW DSSURDFKVKRZWKDWRI1LFKLUHNLZDVUHTXLUHGWR DGGWRWKHZHLJKWRI5$3DVSKDOW
7KH LQFUHDVH LQ WKH SHUFHQWDJH RI 5$3 DVSKDOW ZDV DOVRLQOLQHZLWKWKHDPRXQWRI1LFKLUHNL UHMXYHQDWLQJ PDWHULDO XVHG DQG FRQVLVWHQWO\ LQFUHDVHG WKH SHQHWUDWLRQYDOXHDQGORZHUHGWKHVRIWHQLQJSRLQW7KLV VKRZVWKDWWKHXVHRI1LFKLUHNLLQDVSKDOWPL[LQJFRXOG PDNH WKH DVSKDOW PL[WXUH VRIWHU VR WKDW LW FRXOG LQFUHDVH HODVWLFLW\ DQG JLYH DQ HIIHFW RQ WKH SHUIRUPDQFHRIWKH$&-%&PL[WXUH
0DUVKDOOWHVWUHVXOWVDQDO\VLV
7KH PL[WXUH RI $5$3 SURGXFHG WKH KLJKHVW PD[LPXP VWDELOLW\ YDOXH RI NJ EHFDXVH WKH DVSKDOW PL[WXUH RI 3HQ DVSKDOW ZLWK IXOO H[WUDFWHG DVEXWRQ ZDV VWLIIHU ,Q D PL[WXUH RI $5$3 $5$3 DQG $5$3 WKH VWDELOLW\ YDOXH GHFUHDVHG ZLWK WKH DGGLWLRQ RI DVSKDOW FRQWHQW ZKHUHWKHPD[LPXPVWDELOLW\YDOXHZDVREWDLQHGDWWKH PLQLPXPDVSKDOWFRQWHQWRINJNJ NJ WKLV LQGLFDWHV WKH KLJKHU WKH DVSKDOW
FRQWHQW WKH KLJKHU WKH DPRXQW RI UHMXYHQDWLQJ PDWHULDODOORZLQJWKHDVSKDOWLQWKH$&-%&PL[WXUHWR EHFRPH VRIWHU VRWKDWWKHVWUHQJWKRIWKHPL[WXUHWRFDUU\ WKHORDGGHFUHDVHG
7KH UHVXOWV RI WKH IORZ WHVW LQ DOO YDULDWLRQV RI WKH PL[WXUH WKH YDOXH LQFUHDVHG ZLWK WKH DGGLWLRQ RI DVSKDOW FRQWHQW ZKHUH WKH $5$3 PL[WXUH KDV WKH ORZHVW IORZ YDOXH GXH WR WKH KLJKHU VWLIIQHVV RI WKH DVSKDOWZKLOHWKHPL[WXUHFRQWDLQLQJ5$3WKHPL[WXUH RIDVSKDOWDQG1LFKLUHNL UHMXYHQDWLQJPDWHULDOEHFDPH VRIWVRWKDWWKHIORZYDOXHZDVKLJKHU7KLVDOORZVWKH $5$3PL[WXUHWRUHFHLYHDJUHDWHUORDGWKDQWKHPL[WXUH FRQWDLQLQJ5$3PDWHULDOEHIRUHXQGHUJRLQJGHIRUPDWLRQ
$5$3 PL[WXUH SURGXFHG D KLJKHU 04 YDOXH LQ DFFRUGDQFHZLWKWKH UHVXOWVRI VWDELOLW\DQG IORZWHVWV :KLOH LQ WKH YDULDWLRQ RI WKH PL[WXUH ZLWK 5$3 PDWHULDO WKH UHVXOWLQJ 04 YDOXH GHFUHDVHG ZLWK LQFUHDVLQJ DVSKDOW FRQWHQW ZKHUH DV DVSKDOW FRQWHQW LQFUHDVHG WKH UHVXOWLQJ VWDELOLW\ YDOXH GHFUHDVHG DQG WKH\LHOGYDOXHLQFUHDVHG
7KH9,0YDOXHLQWKH$5$3PL[WXUHVKRZVDKLJKHU YDOXH GXH WR WKH DVSKDOW PL[WXUH EHLQJ VWLIIHU DQG FDXVLQJWKHDVSKDOWWRQRWEHDEOHWR IXOO\ ILOOWKHYRLG LQ PL[ 0HDQZKLOH LQ DOO YDULDWLRQV RI WKH PL[WXUH ZLWK 5$3 PDWHULDO WKH 9,0 YDOXH ZDV VPDOOHU EHFDXVH WKH DVSKDOW PL[WXUH KDG D IDLUO\ JRRG HODVWLFLW\DQGWKHJUHDWHUWKHDVSKDOWFRQWHQWWKHPRUH 90$ILOOHGZLWKDVSKDOW
7KH90$YDOXHWHQGHGWRLQFUHDVHZLWKWKHDGGLWLRQRI DVSKDOW FRQWHQW LQ HDFK YDULDWLRQ RI WKH PL[WXUH 7KH KLJK90$YDOXHZDVEHFDXVHWKHPRGLILHGDVSKDOWLQ WKH $5$3 DQG $5$3 PL[WXUH ZDV VWLIIHU DQG GLG QRW FRPSOHWHO\ FRYHU WKH DJJUHJDWH YRLGV 0HDQZKLOH WKH $5$3 PL[WXUH KDG WKH ORZHVW 90$ YDOXH 7KLV ZDV SRVVLEOH EHFDXVH RQ WKH PL[WXUHVZLWK5$3PDWHULDOWKHDVSKDOWZDVVRIWHUDQG DEOHWRILOOWKHDJJUHJDWHSRUHVTXLWHZHOO
7KH$5$3PL[WXUHKDGDORZHU9)$YDOXHWKDQWKH PL[WXUHV ZLWK5$3 PDWHULDO GXHWRWKHORZHU DVSKDOW FRQWHQWVRLWFRXOGQRWILOOWKHPL[WXUHYRLGVRSWLPDOO\ :KLOHWKH PL[WXUH ZLWK 5$3 PDWHULDOLQ JHQHUDOWKH 9)$YDOXHZDVKLJKHUZKHUHWKHDVSKDOWFRQWHQWZDV KLJKHU ZKLFK LQGLFDWHV WKDW WKH PL[WXUH XVLQJ 5$3 PDWHULDO FDXVHG WKH DVSKDOW WR EH PRUH FDSDEOH RI ILOOLQJ DJJUHJDWH YRLGV DQG KDV D WKLFNHU DVSKDOW EODQNHW
0L[WXUHDQDO\VLVXQGHU2$&FRQGLWLRQ
7KHFRPSDULVRQEHWZHHQ2$&5HI YDOXHVIRUHDFKPL[WXUH YDULDWLRQFDQEHVHHQLQ)LJXUH
7KH .$2 YDOXH LQ WKH $5$3 PL[WXUH ZDV VPDOOHU WKDQWKHPL[WXUHXVLQJ5$3PDWHULDO,QDPL[WXUHXVLQJ 5$3 PDWHULDO WKH 2$&5HI YDOXH LQFUHDVHG ZLWK WKH DGGLWLRQRIWKHSHUFHQWDJHRI5$3PDWHULDOEHFDXVHLQD PL[WXUH XVLQJ 5$3 PDWHULDO WKH LQFUHDVLQJ FRQWHQW RI 5$3 PDWHULDO ZRXOG UHTXLUH PRUH DVSKDOW WR FRYHU WKH DJJUHJDWHLQWKHPL[WXUH
0DUVKDOOLPPHUVLRQWHVWDQDO\VLV
5HVLGXDO 6WUHQJWK ,QGH[ 56, RQWKH$5$3 PL[WXUH ZDV WKH ORZHVW 7KLV VKRZV WKDW ZDWHU LQILOWUDWLRQ DQG WHPSHUDWXUH ZHUH TXLWH LQIOXHQWLDO LQ UHGXFLQJWKHVWDELOLW\YDOXH,QDGGLWLRQWKHWKLFNQHVVRI WKH DVSKDOW EODQNHW WKDW ZDV QRW RSWLPDO FRXOG DOVR EH RQH RI WKH IDFWRUV WKDW FDXVHG WKH GXUDELOLW\ RI WKH PL[WXUHWRGHFUHDVHDJDLQVWWKHLQIOXHQFHRIZDWHU,QWKH PL[WXUHZLWK5$3PDWHULDOWKH56,YDOXHREWDLQHGZDV !DQGLQFUHDVHGZLWKWKHDGGLWLRQRIWKHSHUFHQWDJH RI 5$3 PDWHULDO LQ WKH PL[WXUH 7KLV VKRZV WKDW WKH PL[WXUHXVLQJ5$3PDWHULDOKDGEHWWHUDGKHVLRQEHWZHHQ DJJUHJDWH DQG DVSKDOW DQG KDG JRRG UHVLVWDQFH WR WKH LQIOXHQFHV RI ZDWHU DQG WHPSHUDWXUH DQG FDXVHG WKH PL[WXUHWREHFRPHZDWHUWLJKWDQGPRUHGXUDEOHEHFDXVH LWZDVQRWSURQHWRVWULSSLQJ
5HVLOLHQWPRGXOXVWHVWDQDO\VLV
5HVLOLHQW PRGXOXV WHVW UHVXOWV XVLQJ 80$77$ WRRO DW WHPSHUDWXUHVRIR&DQGR&FDQEHVHHQLQ)LJXUH

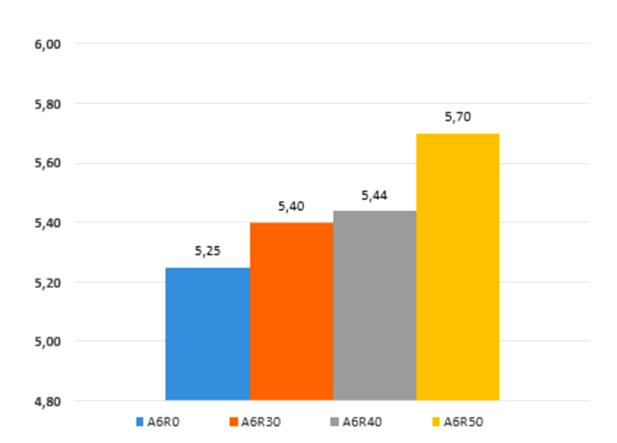

)LJXUH2$&5HI YDOXHVFRPSDULVRQIRUHDFKYDULDWLRQRI PL[WXUH
$WWKHWHVWWHPSHUDWXUHRIR&DQGR&WKH$5$3 PL[WXUHSURGXFHGTXLWHKLJK5HVLOLHQFH0RGXOXVYDOXHV RI 03D DQG 03D WKHVH YDOXHV ZHUH LQIOXHQFHG E\ DVSKDOW PRGLILFDWLRQ RI 6KHOO 3HQ $VSKDOW ZLWK WKH DGGLWLRQ RI IXOO H[WUDFWHG DVEXWRQ ZKLFKKDGKLJKVWLIIQHVVZKLFKZDVDOVRLQDFFRUGDQFH ZLWK WKH VWDELOLW\ YDOXH DQG \LHOG YDOXH VR WKDW LW KDG JRRGGHIRUPDWLRQUHVLVWDQFH
,QPL[WXUHV ZLWK5$3PDWHULDO DWWKHWHVWWHPSHUDWXUH RI R& DQG R& WKH $5$3 PL[WXUH KDG WKH KLJKHVW 5HVLOLHQW 0RGXOXV YDOXH FRPSDUHG WR WKH $5$3 DQG $5$3 PL[WXUHV ZKLFK ZHUH 03DDQG03D7KH$5$3PL[WXUHKDGDKLJKHU 5HVLOLHQW0RGXOXV YDOXH EHFDXVHLW KDG D VPDOOHU YRLG LQPL[DQGKDGDKLJKHU2$&WKDQWKH$5$3PL[WXUH VRWKDWWKHUHZDVDQDGHTXDWHDVSKDOWILOPOD\HUWRFRYHU WKH DJJUHJDWH WR PDLQWDLQ WKH ERQG EHWZHHQ WKH DJJUHJDWHV ZKHQ JLYHQ D ORDG DW ORZ DQG KLJK WHPSHUDWXUHV :KLOH WKH $5$3 DQG $5$3 PL[WXUHV DW WHVW WHPSHUDWXUHV RI R& DQG R& SURGXFHG D KLJK 5HVLOLHQW0RGXOXV RI 03D DQG 03DUHVSHFWLYHO\DQG03DDQG03D
5HVLVWDQFHWRIDWLJXHWHVWUHVXOW
,QWKHWHVWZLWKDVWUDLQRIİWKH$5$3PL[WXUH SURGXFHG WKH ORQJHVW IDWLJXH OLIH RI F\FOHV ZKLFK VKRZV WKDW WKH PL[WXUH FRQWDLQLQJ PRGLILHG $VSKDOW6KHOO3HQDQG IXOOH[WUDFWHGDVEXWRQKDV EHWWHUIDWLJXHUHVLVWDQFH
,QWKHWHVWZLWKDVWUDLQRIİWKH$5$3PL[WXUH SURGXFHGWKHVKRUWHVWIDWLJXHOLIHRIF\FOHVZKLFK VKRZVWKHKLJKVWLIIQHVVRIWKH$5$3PL[WXUHSURQH

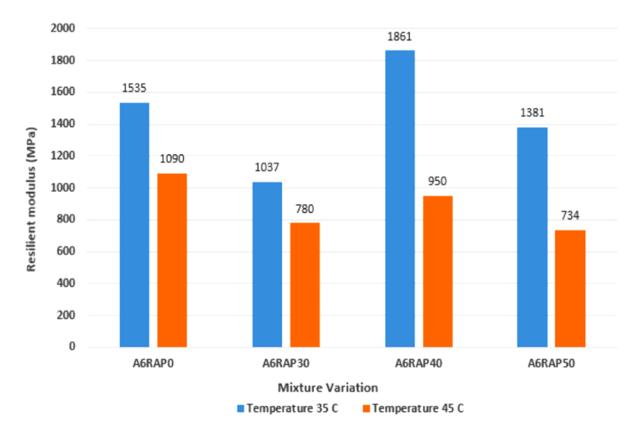

)LJXUH&RPSDULVRQEHWZHHQUHVLOLHQWPRGXOXVYDOXHV XVLQJ80$77$WHVWWRRO
7DEOH0DUVKDOSDUDPHWHUVRIHDFKPL[WXUHYDULDWLRQXQGHU2$&FRQGLWLRQ
| 0DUVKDOO3DUDPHWHU | 6SHFLILFDWLRQ | $5$3 | $5$3 | $5$3 | $5$3 |
|---|---|---|---|---|---|
| 2$& | - | ||||
| 6WDELOLW\NJ | PLQ | ||||
| )ORZPP | - | ||||
| 9,0 | – | ||||
| 90$ | 0LQ | ||||
| 9)$ | 0LQ | ||||
| 04NJPP |

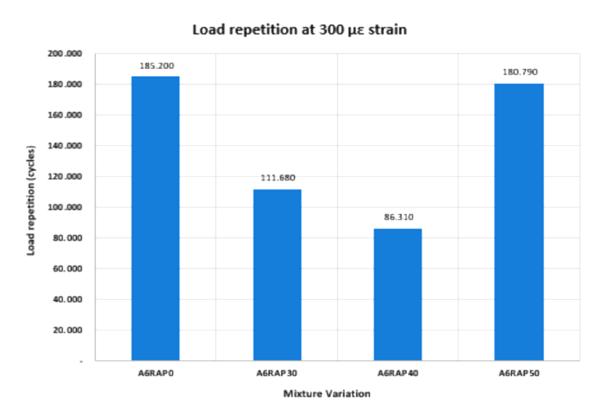

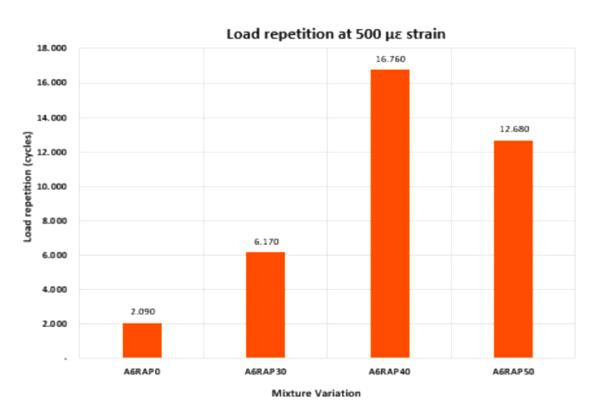

)LJXUH)DWLJXHOLIHDWİ DQGİ VWUDLQVIRUHDFKPL[WXUHYDULDWLRQ
WRKLJKVWUDLQEHFDXVHWKHJUHDWHUWKHVWUHVVJHQHUDWHG DQGWKHIDVWHUIDLOXUHLVDFKLHYHG
,Q WKH PL[WXUHV ZLWK 5$3 PDWHULDO DW D VWUDLQ RI İ WKH ORQJHVW IDWLJXH OLIH ZDV SURGXFHG LQ WKH $5$3 PL[WXUH RI F\FOHV :KLOH IRU WKH PL[WXUH RI $5$3 DQG $5$3 WKH\ ZHUH F\FOHVDQGF\FOHVRU DQG FRPSDUHG WR WKH IDWLJXH OLIH RI WKH $5$3 PL[WXUH 7KLV VKRZV WKDW WKH PL[WXUH XVLQJ 5$3 KDV D IDLUO\ KLJK 5HVLOLHQW0RGXOXV VR WKDW WKH PL[WXUHWHQGVWRJHWIDWLJXHGPRUHTXLFNO\
$WDVWUDLQRIİWKHPL[WXUHVZLWK5$3PDWHULDO SURGXFHG D IDLUO\ ORQJ IDWLJXH OLIH ZKHUH WKH $5$3 $5$3 DQG $5$3 PL[WXUHV¶ IDWLJXH OLIH ZDV F\FOHV F\FOHV DQG F\FOHV RU HTXDO WR DQG FRPSDUHG WR WKH $5$3 PL[WXUH¶V IDWLJXH OLIH,WLVSRVVLEOHWKDWWKHPL[WXUHXVLQJ5$3PDWHULDO KDVDFRPSRVLWHDVSKDOWWKDWKDVKLJKHODVWLFLW\VRWKDW DW KLJK VWUDLQ WKH PL[WXUH ZLWK WKH XVH RI 5$3 PDWHULDOLVPRUHIOH[LEOHVRLWLVUHVLVWDQWWRIDWLJXH
&RQFOXVLRQVDQG6XJJHVWLRQV
&RQFOXVLRQV
%DVHG RQWKH SUHVHQWDWLRQ DQG DQDO\VLV RIWKH GDWDLW FDQEHFRQFOXGHGWKDW
- 7KH WHVW UHVXOWV RQ WKH H[WUDFWHG 5$3 PDWHULDO VKRZHG WKDW WKH 5$3 DVSKDOW PDWHULDO KDV XQGHUJRQH DJLQJ VR WKDW LW EHFRPHV VWLIIHU ZKHUH ZLWK WKH DGGLWLRQ RI 1LFKLUHNL WKH 5$3 DVSKDOWPDWHULDOPD\EHFRPHVRIWHUVRWKDWLWFDQEH XVHG LQ DVSKDOW PL[WXUHV :KLOH IRU WKH 5$3 PDWHULDO DJJUHJDWH LW LV QHFHVVDU\ WR DGG VHYHUDO QHZ DJJUHJDWH VL]HV WR PDLQWDLQ WKH SODQQHG JUDGDWLRQWRPHHWVSHFLILFDWLRQV
- 7KHDGGLWLRQRI IXOOH[WUDFWHGDVEXWRQWR6KHOO3HQ $VSKDOW ZLWKRXW 5$3 DVSKDOW KDV D ORZHU SHQHWUDWLRQ YDOXH DQG KLJKHU PHOWLQJ SRLQW WHPSHUDWXUH WKDQ PL[WXUHV ZLWK 5$3 DVSKDOW DQG 1LFKLUHNL 7KHLQFUHDVHLQ 5$3 DVSKDOW FRQWHQWLQ WKHFRPELQDWLRQRI3HQ6KHOODVSKDOWDQGIXOO H[WUDFWHG DVEXWRQ ZLWK 5$3 DVSKDOW DQG 1LFKLUHNL LQGLFDWHV WKDW WKH DVSKDOW PL[WXUH EHFRPHV VRIWHU
LQGLFDWHGE\WKHJUHDWHUSHQHWUDWLRQYDOXHDQGORZHU VRIWHQLQJSRLQWWHPSHUDWXUH
- 8QGHU 2$&5HI FRQGLWLRQ WKH VWDELOLW\ DQG 04 YDOXHV LQ WKH PL[WXUH ZLWKRXW 5$3 PDWHULDO $5$3 UHVXOWHG LQ WKH KLJKHVW YDOXHV DQG WKH ORZHVW IORZ YDOXH 2Q PL[WXUHV XVLQJ 5$3 PDWHULDOWKH56,REWDLQHGZHUHKLJKHUWKDQ
- $W WKH WHVW WHPSHUDWXUH RI R& DQG R& WKH $5$3 PL[WXUH SURGXFHG D IDLUO\ KLJK 5HVLOLHQW 0RGXOXVYDOXHRI03DDQG03DZKLOH IRU WKH PL[WXUHV ZLWK 5$3 PDWHULDO DW WKH WHVW WHPSHUDWXUH RI R& DQG R& WKH $5$3 PL[WXUHKDGWKHKLJKHVW5HVLOLHQW0RGXOXVYDOXHRI 03D DQG 03D 7KH $5$3 PL[WXUH DOVR KDG D 5HVLOLHQW0RGXOXV YDOXH RI 03D DQG03D
- $W D VWUDLQ RI İ WKH $5$3 PL[WXUH SURGXFHGWKHORQJHVW IDWLJXHOLIH F\FOHV ZKLOHDWDVWUDLQRIİWKHIDWLJXHOLIHZDVWKH VKRUWHVW F\FOHV )RU PL[WXUHV XVLQJ 5$3 PDWHULDO DW D VWUDLQ RI İ WKHORQJHVW IDWLJXH OLIHZDVSURGXFHGE\$5$3PL[WXUHRI $5$3¶VIDWLJXHOLIH:KLOHDWDVWUDLQRIİ LWZDVRI$5$3¶VIDWLJXHOLIH7KLVZDV SUREDEO\EHFDXVHPL[WXUHVXVLQJ5$3PDWHULDODUH PRUHIOH[LEOHDQGUHVLVWDQWWRIDWLJXH
2YHUDOO7HVW&RQFOXVLRQ
*HQHUDOO\ EDVHG RQ WKH UHVXOWV RI WHVWV DQG DQDO\VLV IRU WKH VXLWDELOLW\ RI WKH XVH RI IXOO H[WUDFWHGDVEXWRQZLWKWKHSHUIRUPDQFHRIWKH$&- %&PL[WXUH ZLWKWKH XVH RI5$3PDWHULDOWKH XVH RI IXOO H[WUDFWHG DVEXWRQ FRQWHQW RI LV UHFRPPHQGHG LQ WKH $&-%& PL[WXUH ZLWK D 5$3 FRQWHQWRIEHFDXVHLWLQFUHDVHVWKHVWUHQJWKRI WKH PL[WXUH LQ WKH IRUP RI VWDELOLW\ DQG 5HVLOLHQW 0RGXOXVDQGSURYLGHVORQJIDWLJXHOLIH
6XJJHVWLRQV
%DVHG RQ WKH UHVXOWV RI WKH UHVHDUFK KHUH DUH VRPH VXJJHVWLRQVWKDWDUHSURSRVHG
$WWKHPL[WXUH-PDNLQJVWDJHIXOOH[WUDFWHGDVEXWRQ DQG6KHOO3HQ$VSKDOW VKRXOGEHPL[HG ILUVW EHIRUHEHLQJDGGHGWRWKHDJJUHJDWH
- )XUWKHU UHVHDUFK RQ WKH SHUFHQWDJH RI 1LFKLUHNL UHMXYHQDWLQJ PDWHULDO WR LPSURYH WKH UKHRORJLFDO SURSHUWLHV RI DVSKDOW IRU WKH XVH RI KLJK-JUDGH 5$3 PDWHULDOLVQHFHVVDU\
- )XUWKHU UHVHDUFK RQ WKH DVSKDOW FRQWHQW RI WKH 5$3 PDWHULDOWKDW FDQ EH DFWLYDWHGLQWKH5$3PL[WXUHLV QHFHVVDU\
- ϰ͘ ,W LV QHFHVVDU\ WR WHVW WKH UKHRORJLFDO SURSHUWLHV RI DVSKDOWXVLQJD'\QDPLF6KHDU5KHRPHWHU'65 RQ 5$3 DVSKDOW ZLWK WKH DGGLWLRQ RI D UHMXYHQDWLQJ PDWHULDO LQ RUGHU WR GHWHUPLQH LWV HIIHFW RQ WKH SHUIRUPDQFHRIDPL[WXUHXVLQJ5$3PDWHULDO
- ϱ͘ ,W LV QHFHVVDU\ WR FRQGXFW D IDWLJXH WHVW ZLWK ODUJH YDULDWLRQVLQORDGLQJLQ DFFRUGDQFH ZLWKWKHORDGLQJ LQWKHILHOG
5HIHUHQFHV
- $$6+72 6WDQGDUG 6SHFLILFDWLRQV IRU 7UDQVSRUWDWLRQ 0DWHULDOV DQG 0HWKRGV RI 6DPSOLQJ DQG 7HVWLQJ $PHULFDQ $VVRFLDWLRQ RI 6WDWH +LJKZD\ DQG 7UDQVSRUWDWLRQ 2IILFLDOV :DVKLQJWRQ
- $IIDQGL ) -XUQDO (NVWUDNVL $VSDO $VEXWRQ 8QWXN &DPSXUDQ %HUDVSDO 3DQDV 3XVOLWEDQJ -DODQGDQ-HPEDWDQ%DQGXQJ
- $]ND $ $QDOLVLV .LQHUMD &DPSXUDQ /DSLV $QWDUD $&-%& GDQ +RW 5ROOHG $VSKDOW 0HQJJXQDNDQ $VEXWRQ 0XUQL )XOO (NVWUDNVL 7HVLV3URJUDP0DJLVWHU,QVWLWXW7HNQRORJL%DQGXQJ
- 'LUHNWRUDW-HQGHUDO%LQD0DUJD 6SHVLILNDVL8PXP 5HY .HPHQWHULDQ3HNHUMDDQ8PXP-DNDUWD
- 'MXQDHGL 52 .DMLDQ .DUDNWHULVWLN 5HRORJL &DPSXUDQ /DWDVWRQ +56-:& %HUGDVDUNDQ 6SHVLILNDVL .HPHQWHULDQ 3HNHUMDDQ 8PXP 0HQJJXQDNDQ $VSDO 3HQ 'HQJDQ 3HQDPEDKDQ $VEXWRQ 0XUQL 7HVLV 3URJUDP 0DJLVWHU,QVWLWXW7HNQRORJL%DQGXQJ
- +XDQJ <+ 3DYHPHQW $QDO\VLV DQG 'HVLJQ 6HFRQG(GLWLRQ3UHQWLFH+DOO,QF1HZ-HUVH\
- ,QGUL\DWL (: .DMLDQ 3HUEDLNDQ 6LIDW 5HRORJL 9LVFR-(ODVWLF$VSDOGHQJDQ3HQDPEDKDQ$VEXWRQ 0XUQL 0HQJJXQDNDQ 3DUDPHWHU &RPSOH[ 6KHDU 0RGXOXV 7HVLV 3URJUDP 0DJLVWHU ,QVWLWXW 7HNQRORJL%DQGXQJ
- .XUQLDGMLH 0RGLILNDVL $VSDO .HUDV 6WDQGDU 'HQJDQ %LWXPHQ $VEXWRQ +DVLO (NVWUDNVL 3XVDW /LWEDQJ-DODQGDQ-HPEDWDQ%DQGXQJ
- 0DKD , 6XEDJLR %6 )XUTRQ ( DQG 5DKPDQ + 3HUIRUPDQFH RI :DUP 0L[ $VSKDOW &RQFUHWH %LQGHU &RXUVH $&-%& ZLWK 5HFODLPHG $VSKDOW 3DYHPHQW -RXUQDO RI WKH (DVWHUQ $VLD 6RFLHW\ IRU 7UDQVSRUWDWLRQ 6WXGLHV 9RO–
- 1LUZDQ ( .DMLDQ .DUDNWHULVWLN 0RGXOXV 'LQDPLV 'DQ 0RGXOXV 5HVLOLHQ 3DGD &DPSXUDQ /DSLV 3HQJLNDW $&-%& 'HQJDQ 0HQJJXQDNDQ
- 0DWHULDO 'DXU 8ODQJ 5$3 7HVLV 3URJUDP 0DJLVWHU,QVWLWXW7HNQRORJL%DQGXQJ
- 1RIUL]D ( (YDOXDVL SHQLQJNDWDQ NLQHUMD FDPSXUDQ /DVWRQ /DSLV $XV $&-:& GHQJDQ SHUEDLNDQ VLIDW UHRORJL YLVFR-HODVWLF DVSDO GLWDPEDK DVEXWRQ PXUQL 7HVLV 3URJUDP 0DJLVWHU,QVWLWXW7HNQRORJL%DQGXQJ
- 1RQR 3HQJDUXK %DKDQ 3HUHPDMD 7HUKDGDS .LQHUMD &DPSXUDQ %HUDVSDO 3DQDV %HUJUDGDVL 0HQHUXV 0HQJJXQDNDQ 'DXU 8ODQJ 3HUNHUDVDQ %HUDVSDO 3XVDW /LWEDQJ -DODQ GDQ -HPEDWDQ %DQGXQJ
- 3UDGLSWD : .LQHUMD 0RGXOXV 5HVLOLHQ 'DQ 'HIRUPDVL 3HUPDQHQ 'DUL &DPSXUDQ /DSLV $QWDUD $&-%& <DQJ 0HQJJXQDNDQ 0DWHULDO +DVLO'DXU8ODQJ 5$3 GDQ%1$%OHQG 'DODP $VSDO &DPSXUDQ 3DQDV 7HVLV 3URJUDP 0DJLVWHU,QVWLWXW7HNQRORJL%DQGXQJ
- 3ULPDGL\DQWL 63 (YDOXDVL 3HUEDLNDQ 6LIDW 5HRORJL 9LVFR-(ODVWLF $VSDO 'HQJDQ 3HQDPEDKDQ $VEXWRQ 0XUQL 8QWXN 0HQLQJNDWNDQ .LQHUMD &DPSXUDQ /DVWRQ /DSLV 3HQJLNDW $&-%& %HUJUDGDVL .DVDU 7HVLV 3URJUDP0DJLVWHU,QVWLWXW7HNQRORJL%DQGXQJ
- 5DKPDQ+ (YDOXDVL0RGHO0RGXOXV%LWXPHQ $VEXWRQ GDQ 0RGHO 0RGXOXV &DPSXUDQ \DQJ 0HQJDQGXQJ %LWXPHQ $VEXWRQ 'LVHUWDVL 3URJUDP'RNWRU,QVWLWXW7HNQRORJL%DQGXQJ
- 6XDU\DQD 1 6XVDQWR , 6HPED\DQJ ,5 (YDOXDVL NLQHUMD FDPSXUDQ EHUDVSDO GHQJDQ ELWXPHQ KDVLO HNVWUDNVL SHQXK GDUL $VEXWRQ 0HGLD.RPXQLNDVL7HNQLN6LSLO-
- 6XEDJLR %6 5DKPDQ + 6LQXKDML &$9 .LQHUMD 0RGXOXV 5HVLOLHQ GDQ GHIRUPDVL SHUPDQHQ GDUL FDPSXUDQ /DWDVWRQ JUDGDVL VHQMDQJ +56-:& GHQJDQ EDKDQ DVSDO PRGLILNDVL6WDUELW(--XUQDO7HNQLN6LSLO –
- :DQXG\DQLQJUXP $ $QDOLVLV 3HQJDUXK.DGDU )LQH $JJUHJDWH 'DUL 5HFODLPHG $VSKDOW 3DYHPHQW 7HUKDGDS .LQHUMD &DPSXUDQ 3DQDV $& - %& 5HF\FOHG 7HVLV 3URJUDP 0DJLVWHU ,QVWLWXW7HNQRORJL%DQGXQJ
- <RGHU (- :LWF]DN 0: 3ULQFLSOHV RI 3DYHPHQW 'HVLJQ QG (GLWLRQ -RKQ :LOH\ 6RQV,QF86$
- =DXPDQLV0DQG0DOOLFN5% 5HYLHZRIYHU\ KLJK-FRQWHQW UHFODLPHG DVSKDOW XVH LQ SODQW-SURGXFHG SDYHPHQWV VWDWH RI WKH DUW ,QWHUQDWLRQDO -RXUQDO RI 3DYHPHQW (QJLQHHULQJ -<RGHU(-:LWF]DN0: 3ULQFLSOHV RI 3DYHPHQW 'HVLJQ 6HFRQG (GLWLRQ 86$-RKQ:LOH\ 6RQV,QF
